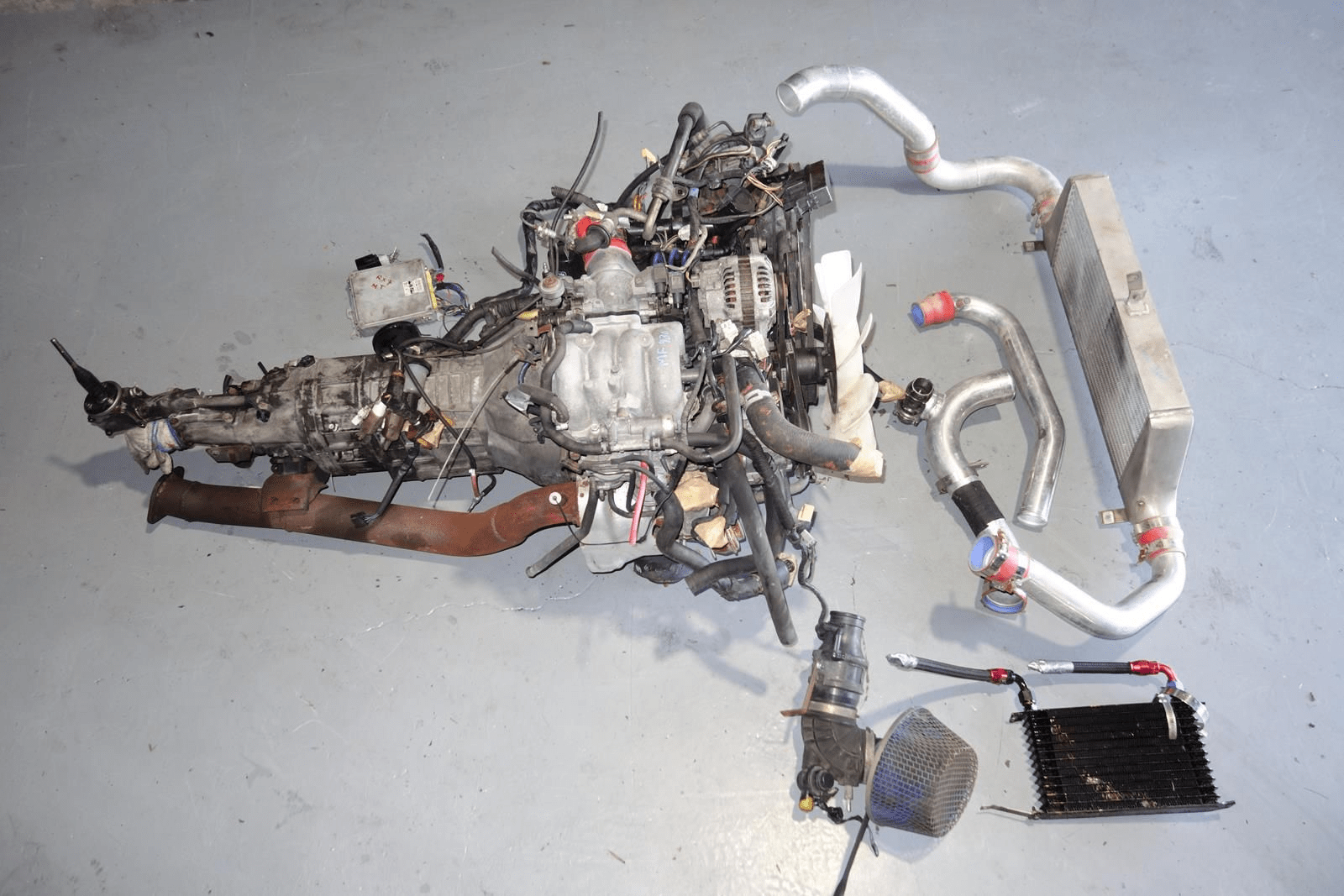

1988–1991 JDM Mazda RX7 13B Turbo Rotary Engine 5-Speed Transmission FC3S RX-7 FC

Description

Buy JDM Mazda RX7 13B Turbo Engine & 5MT Online

Buy 1988–1991 JDM Mazda RX7 13B Turbo Rotary Engine 5-Speed Transmission FC3S RX-7 FC Online

The JDM Mazda RX7 FC3S 13B Turbo Rotary Engine with 5-Speed Transmission (1988–1991) is one of the most legendary Japanese performance powertrains ever created. Mazda’s 13B turbocharged rotary defined an era of lightweight, high-revving sports cars and continues to attract enthusiasts, collectors, and builders who appreciate its unique design, compact packaging, and thrilling driving character. At jdmcarpart.com, we specialize in sourcing authentic JDM engines and transmissions, offering this classic setup — tested, inspected, and shipped worldwide — for enthusiasts restoring an FC3S RX-7 or planning a custom swap project. Buy JDM Mazda RX7 13B Turbo Engine & 5MT Online

The Mazda 13B Turbo: A Rotary Icon

The 13B Turbo is a two-rotor Wankel rotary engine with a displacement of 1,308 cc (measured differently than piston engines). It delivers performance far greater than its size suggests thanks to forced induction, high RPM capability, and Mazda’s rotary engineering. Found in the Series 4 and Series 5 RX-7 FC models (1988–1991), this engine offered a factory-rated 185–200 HP in JDM spec, paired with broad torque delivery for an exhilarating yet manageable driving experience.

Key Specifications:

• Engine Code: 13B-T (Turbocharged)
• Configuration: Twin-rotor rotary, turbocharged
• Displacement: 1,308 cc (rotary equivalent to larger piston engines)
• Turbocharger: Hitachi HT18 or IHI RHB5 turbo depending on year/version
• Output: 185–200 HP (JDM spec)
• Torque: ~183 lb-ft
• Redline: ~7,000 RPM
• Fueling: Electronic fuel injection
• Cooling: Water-cooled with oil cooling system
• Applications: 1988–1991 Mazda RX-7 FC3S (Turbo II models in JDM)

Transmission: 5-Speed Manual

The matching 5-speed manual transmission included in this package was engineered specifically for the RX-7 FC Turbo II. Known for its strength and short-throw feel, it complements the rotary’s rev-happy nature and provides crisp gear engagement. Buy JDM Mazda RX7 13B Turbo Engine & 5MT Online

Transmission Specs:

• Type: 5-speed manual gearbox
• Final Drive: 4.10 (varies by year)
• Design: Close-ratio for performance driving
• Strength: Capable of handling upgraded power builds
• Applications: RX-7 FC3S Turbo II (1988–1991)

Why Enthusiasts Choose the 13B Turbo + 5MT Combo

1. Rotary Heritage: The 13B turbo is one of the most iconic rotary engines ever, representing Mazda’s engineering brilliance.
2. Compact & Lightweight: Perfect for swaps into smaller chassis or as a replacement in an FC RX-7.
3. High Tuning Potential: With porting, upgraded turbos, and supporting mods, 300–400+ HP is achievable.
4. Unique Driving Experience: Instant throttle response, linear powerband, and screaming redline.
5. Collector’s Value: FC3S RX-7s are becoming classics, and having the original JDM powertrain adds authenticity. Buy JDM Mazda RX7 13B Turbo Engine & 5MT Online

Performance & Tuning Potential

The 13B turbo rotary engine has immense tuning potential, limited only by your build budget and maintenance discipline.

• Stage 1 (Mild Upgrades): Intake, exhaust, ECU tune, and intercooler = 220–240 HP.
• Stage 2 (Intermediate Builds): Larger turbo, bigger injectors, upgraded fuel pump, standalone ECU = 300+ HP.
• Stage 3 (Advanced Builds): Street-port or bridge-port engine work, forged apex seals, high-flow turbos = 400–500+ HP potential.

Rotary engines require meticulous maintenance — oil changes every 3,000 miles, proper premixing with 2-stroke oil (for apex seal lubrication), and careful tuning — but reward enthusiasts with a uniquely thrilling experience. Buy JDM Mazda RX7 13B Turbo Engine & 5MT Online

Applications & Swap Possibilities

The JDM 13B Turbo + 5-speed transmission package is primarily intended for:

• 1988–1991 RX-7 FC3S Turbo II restorations
• FC3S RX-7 engine replacements
• Custom swaps into lightweight cars, kit cars, or other Mazda platforms

Popular swaps include classic RX-7 SA/FB chassis, RX-8 retrofits, or even lightweight RWD builds like Miatas, Datsuns, or custom tube-frame projects. Buy JDM Mazda RX7 13B Turbo Engine & 5MT Online

Condition & Quality Control

At jdmcarpart.com, we ensure each imported 13B Turbo engine undergoes strict testing and inspection:

1. Compression Testing (rotary-specific method) to check apex seal health.
2. Leak and Visual Inspections for cracks, coolant/oil mixing, and damage.
3. Rotation & Smoothness Test to confirm mechanical integrity.
4. Accessory Check (intake manifold, turbo, wiring, ECU may vary by package).
5. Transmission Test for shifting smoothness and synchro health. Buy JDM Mazda RX7 13B Turbo Engine & 5MT Online

Shipping & Warranty

• Shipping: Palletized, shrink-wrapped, and shipped via insured freight worldwide.
• Warranty: 30-day startup warranty against internal defects.
• Support: Guidance provided for installation, premixing, tuning, and rotary-specific care.

Why Buy from jdmcarpart.com?

Because we don’t just sell engines — we deliver authentic JDM quality. With us you get:

• Genuine 13B Turbo rotary engines, directly imported from Japan.
• Compression-tested assurance.
• Lower mileage than domestic salvage motors.
• 30-day startup warranty.
• Worldwide insured freight shipping.
• Technical expertise for rotary swaps and tuning. Buy JDM Mazda RX7 13B Turbo Engine & 5MT Online

---

10 Frequently Asked Questions (FAQs)

1. Is the 13B Turbo a direct fit for my RX-7 FC3S?
Yes, this package is intended for 1988–1991 Turbo II models.

2. Does the engine come with the turbocharger?
Yes, the factory turbo is included (model varies by year). Buy JDM Mazda RX7 13B Turbo Engine & 5MT Online

3. How reliable is the 13B Turbo?
With proper maintenance (oil changes, premixing, careful tuning), it is very reliable.

4. What mileage can I expect from JDM engines?
Typically 40,000–60,000 miles due to Japan’s Shaken inspection laws. Buy JDM Mazda RX7 13B Turbo Engine & 5MT Online

5. Can this engine be swapped into other cars?
Yes, with custom mounts, wiring, and ECU solutions.

6. Do I need a standalone ECU?
For stock use, OEM ECU is fine. For upgrades/tuning, standalone is recommended.

7. What’s the power potential of a built 13B Turbo?
Properly built, 400–500+ HP is possible. Buy JDM Mazda RX7 13B Turbo Engine & 5MT Online

8. What’s included in the warranty?
A 30-day startup warranty covering internal defects.

9. How is the engine shipped internationally?
Palletized, wrapped, and insured freight with customs support.

10. Why buy from jdmcarpart.com?
Because we supply authentic, tested, low-mileage JDM engines with warranty and expert support. Buy JDM Mazda RX7 13B Turbo Engine & 5MT Online
